MCPX Control Plane

The MCPX Control Plane is here to help you investigate your MCP traffic and manage your MCPX instance.

MCPX Control Plane

Installation Instructions​

note

Make sure that you have already cloned the Lunar.dev MCPX Repo and navigate to the /mcpx directory

You can install the MCPX control plane two ways.

  1. Locally
  2. Using Docker

Local Installation​

  1. Install the necessary dependencies using:
npm run build:deps && npm install
  1. Bring up the Webserver (what links between MCPX and the UI) with:
npm run start:webserver
  1. Start the Control Plane with:
npm run start:ui
  1. Navigate to http://localhost:5173/ in your preferred browser.

Docker Installation​

Run the following command to bring up a containerized MCPX instance:

docker run --rm --name mcpx-ui -v ./config:/config -p 9001:9001 -p 5173:5173 us-central1-docker.pkg.dev/prj-common-442813/mcpx/mcpx-ui:latest

Next, navigate to http://localhost:5173/ in your preferred browser.

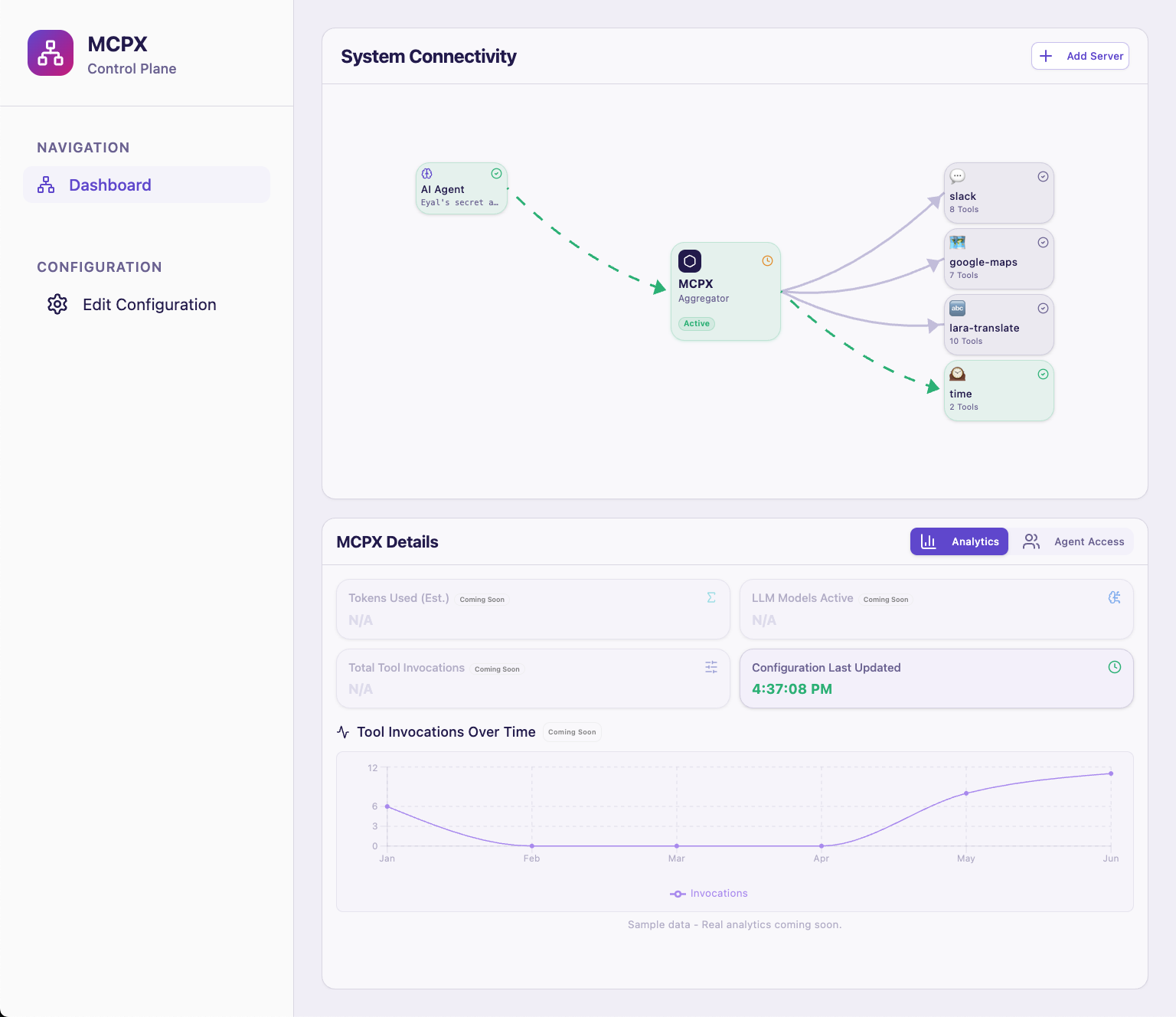

Uses​

Once you have access to your MCPX Control Plane, you can:

  • Add a target server using the "Add Server" button
  • Connect to MCPX
  • Use tools and see basic usage statistics
