Lunar Gateway Integration

Once your Lunar Gateway is installed and connected to MCPX, you’ll begin to see real-time traffic from your MCP servers in the Lunar.dev Control Plane.

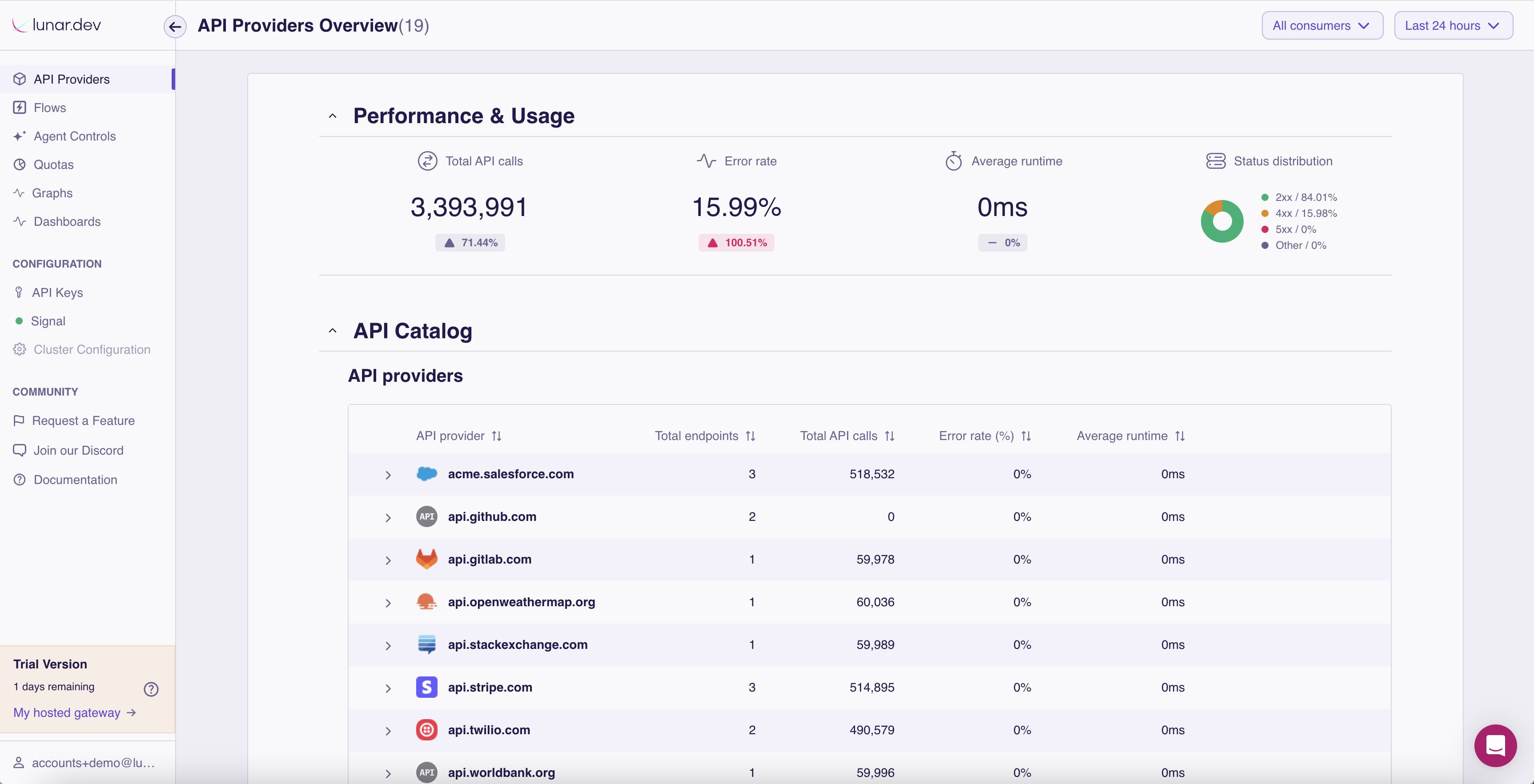

Control Plane

As MCPX routes requests to your backend tools, the UI will automatically surface:

  • Discovered API endpoints
  • Request performance (latency, error rate, throughput)
  • Live traffic logs by endpoint and by server
  • Gateway routing rules and quota usage

Connection Options​

You can run MCPX alongside either a Lunar Hosted Gateway or an on-premises deployment.

To enable this, your container must be granted elevated privileges using the flag --cap-add=NET_ADMIN. This grants only your container ability to configure networking, for example, to add firewall rules using iptables.

Hosted Gateway​

If you are using the Lunar.dev Hosted Gateway, set your API key via the LUNAR_API_KEY environment variable:

interception to hosted gateway
docker run --rm --cap-add=NET_ADMIN -v ./:/lunar/packages/mcpx-server/config -p 9000:9000 -p 5173:5173 -p 9001:9001 -p 3000:3000 -e LUNAR_API_KEY="YOUR_LUNAR_API_KEY" --name mcpx us-central1-docker.pkg.dev/prj-common-442813/mcpx/mcpx:latest

Make sure to replace YOUR_LUNAR_API_KEY with your actual API key found in the Control Plane.

Self-Hosted​

If you're running Lunar Gateway on your own infrastructure, point MCPX to it using the LUNAR_URL environment variable:

interception for self hosted
docker run --rm --cap-add=NET_ADMIN -v ./:/lunar/packages/mcpx-server/config -p 9000:9000 -p 5173:5173 -p 9001:9001 -p 3000:3000 -e LUNAR_URL="http://localhost:8000" --name mcpx us-central1-docker.pkg.dev/prj-common-442813/mcpx/mcpx:latest

Make sure the LUNAR_URL matches the hostname and port used when installing the Lunar Gateway Container.
