Static OAuth Support

Static OAuth support in MCPX extends the existing Client Credentials Flow by adding support for Device Flow Authorization (OAuth 2.0 Device Authorization Grant). Users can now configure either authentication method depending on their needs.

GitHub Included

By default, MCPX includes a single default config for GitHub, however user-supplied configuration will override pre-defined defaults.

How to use​

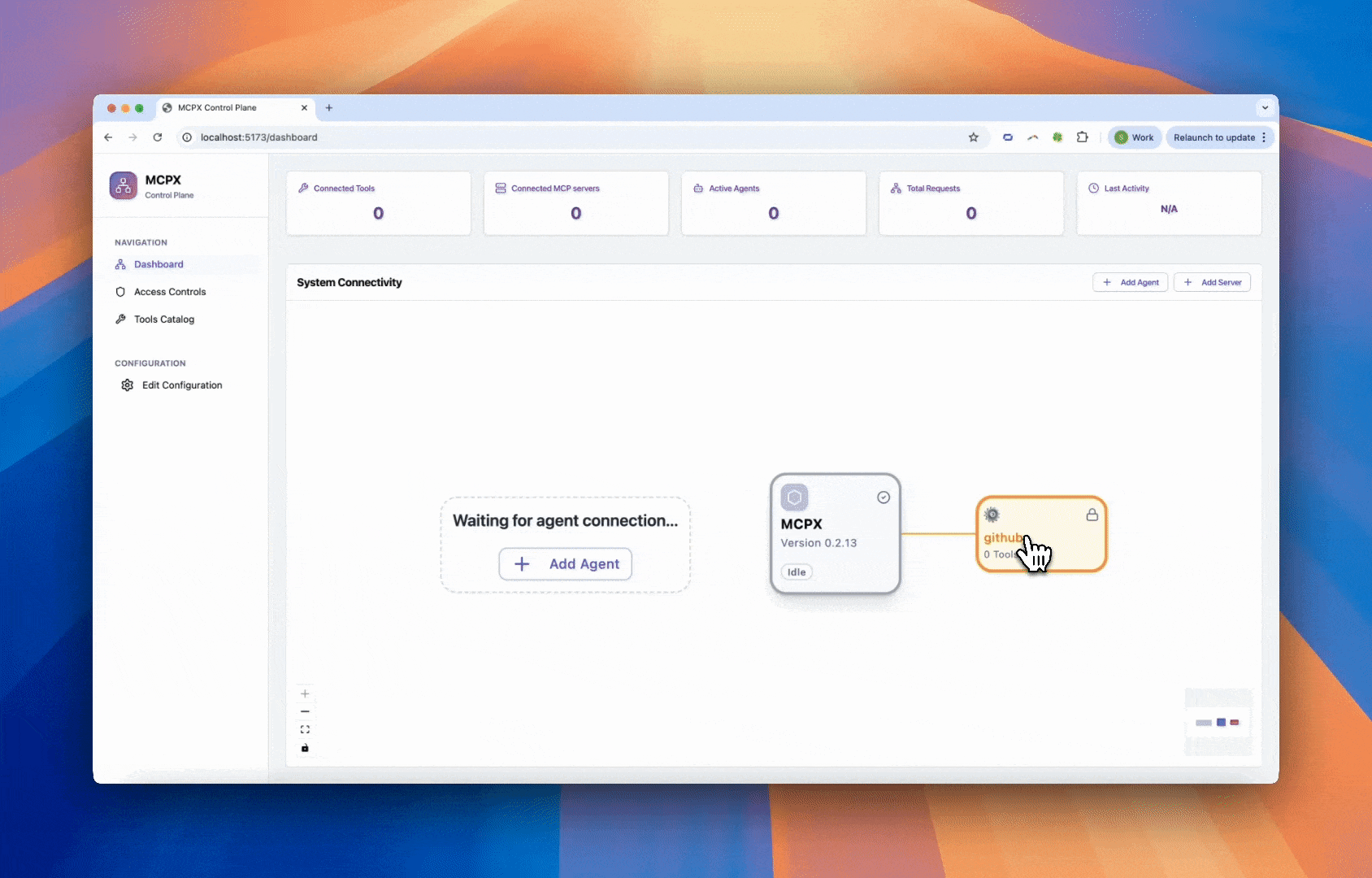

Add the static OAuth snippet to your app.yaml to enable OAuth with device flow. Then restart your MCPX server and log in through the browser with the device code shown in the UI.

static_oauth_setup

Choosing the Right Flow​

  • Client Credentials Flow is suitable when users provide their own organizational or personal OAuth app credentials.
  • Device Flow is useful when you want to avoid distributing a client secret (for example, with a new GitHub OAuth app) or override defaults.

Client Credentials Flow​

Example: private GitHub apps using a client ID and secret.

staticOauth:
  mapping:
    github.com: github-static
    api.github.com: github-static
  providers:
    github-static:
      authMethod: client_credentials
      credentials:
        clientIdEnv: "GITHUB_OAUTH_CLIENT_ID"
        clientSecretEnv: "GITHUB_OAUTH_CLIENT_SECRET"
      scopes: [repo, user, read:org]
      tokenAuthMethod: client_secret_post

Device Flow​

Example: public GitHub apps where no secret is needed.

staticOauth:
  mapping:
    github.com: github-device
    api.github.com: github-device
  providers:
    github-device:
      authMethod: device_flow
      credentials:
        clientIdEnv: "GITHUB_DEVICE_CLIENT_ID"
      scopes: [repo, user, read:org]
      endpoints:
        deviceAuthorizationUrl: https://github.com/login/device/code
        tokenUrl: https://github.com/login/oauth/access_token
        userVerificationUrl: https://github.com/login/device

Parameters​

mapping​

Type: List of Map
Maps a domain or host to a provider key defined under providers and associates the domain with a provider key.

providers​

Type: Map of objects
A dictionary of provider configurations. Each entry corresponds to a single OAuth provider to define the authentication details for each provider key. Each provider must specify an authMethod, either client_credentials or device_flow.

client_credentials Parameters​

Used for private or organizational OAuth apps that include both a client ID and client secret.

authMethod​

Type: "client_credentials"
Required: Yes
Selects the client credentials flow.

clientIdEnv​

Type: string
Required: Yes. Environment variable name that holds the OAuth client ID.

clientSecretEnv​

Type: string
Required: Yes
Environment variable name that holds the OAuth client secret.

scopes​

Type: string
Required: Yes
OAuth scopes requested for this provider.

tokenAuthMethod​

Type: enum Required: Yes
How client credentials are sent to the token endpoint.
Optional Inputs:

  • client_secret_basic
  • client_secret_post
  • client_secret_jwt
  • private_key_jwt
  • tls_client_auth
  • self_signed_tls_client_auth

device_flow Parameters​

Used for public OAuth apps where no client secret is required. Users authenticate by entering a code on a verification page.

authMethod​

Type: "device_flow"
Required: Yes
Selects the device flow authorization method.

clientIdEnv​

Type: string
Required: Yes
Environment variable name that holds the OAuth client ID.

scopes​

Type: string[]
Required: Yes
OAuth scopes requested for this provider.

deviceAuthorizationUrl​

Type: string
Required: Yes
URL of the provider’s device authorization endpoint.

tokenUrl​

Type: string
Required: Yes
URL of the provider’s token endpoint.

userVerificationUrl​

Type: string
Required: Yes
URL users visit to enter the device code and complete authorization.
